AC-500

Medium Commercial Ice Maker — AC-500

New structure design.
Intelligent control system.
Main parts easy to remove.
High-efficiency evaporator plate.
Foam isolation in the ice-making area.
Top ventilation design.
Patented anti-backflow elbow.
Food-grade ice storage bin.

Specification	Details
Production (lbs/kg)	485 lbs/220Kg
Storage Capacity (lbs/kg)	352 lbs/160Kg
Power	800W
Ice Type	Cube/1/2
Cooling	Air/Water
Refrigerant	R410A

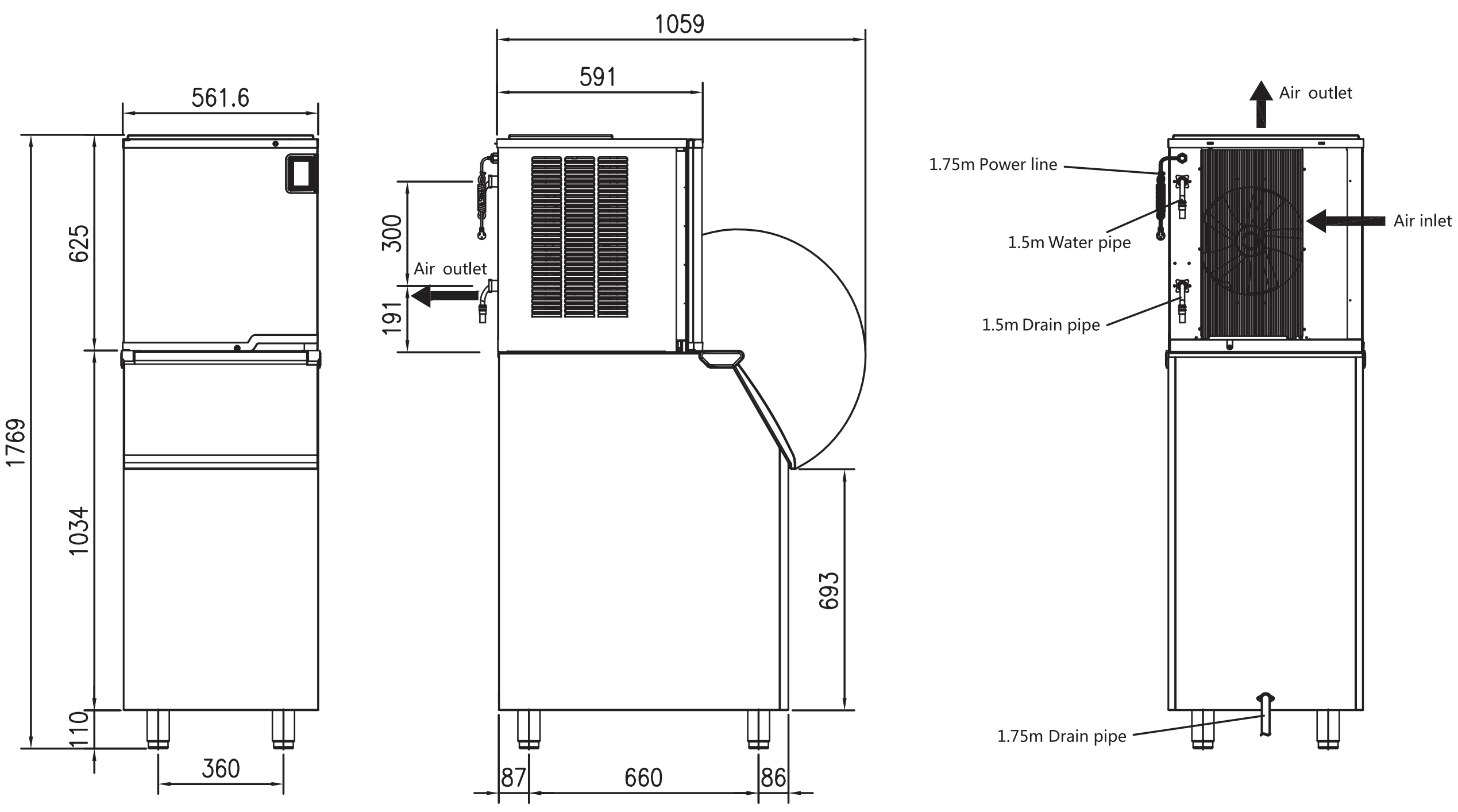

Dimensions WDH (mm)	560 x 885 x ( 1655 + 150 )

Note: AC Series Ice Production Testing Conditions: 21°C and 15°C. Ice type option for M (Cube Ice), S (Half Cube Ice), L (Large Cube Ice).
